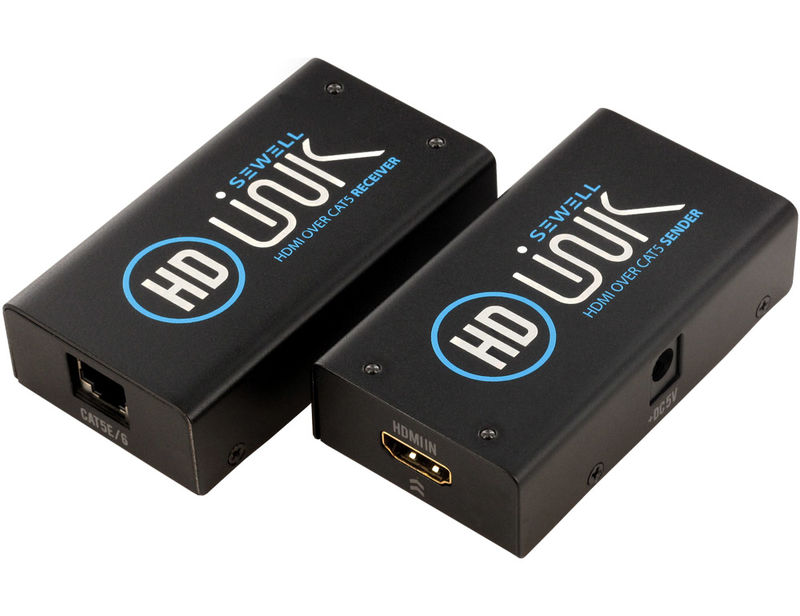

This kit comes as a pair, with one sender unit and one receiver unit. Simply connect this pair together with one networking cable unlike older technology, this extender uses only one cable for the HD signal, and for data (such as EDID and other control signals). Each set-up requires only one line of Cat5e. Once youve connected your HDMI cables to the sender and receiver boxes, and once your power supply is connected to both the receiver box and the sender box, your extension system is ready.
Specifications: 60 Meters (approx. 200 feet) (Cat6 is suggested to insure connectivity at longest lengths).Supports HDMI InputOutput of 480ip, 720p, 1080ip 245060 Hz. Audio Input: DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC-3, DSD. Audio Output: LPCM7.1, DTS, Dolby AC3, DSD.Max Inputoutput HDMI cable: 15M w 26AWG HDMI Cable. Power: DC 5V 2A. Weight: 200g. Dimensions: 82mm x 44mm x 22mm. Package Contents:HDMI over Cat5e Sender Unit. HDMI over Cat5e Receiver Unit. 2x Wall power Adapter. User ManualAdditional Details
Specifications: 60 Meters (approx. 200 feet) (Cat6 is suggested to insure connectivity at longest lengths)Supports HDMI Input/Output of 480i/p, 720p, 1080i/p @ 24/50/60 HzAudio Input: DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC-3, DSDAudio Output: LPCM7.1, DTS, Dolby AC3, DSD.Max Input/output HDMI cable: 15M w/ 26AWG HDMI CablePower: DC 5V 2AWeight: 200g Dimensions: 82mm x 44mm x 22mmPackage Contents:HDMI over Cat5e Sender UnitHDMI over Cat5e Receiver Unit. 2x Wall power AdapterUser Manual
BRAND : SEWELL
|
