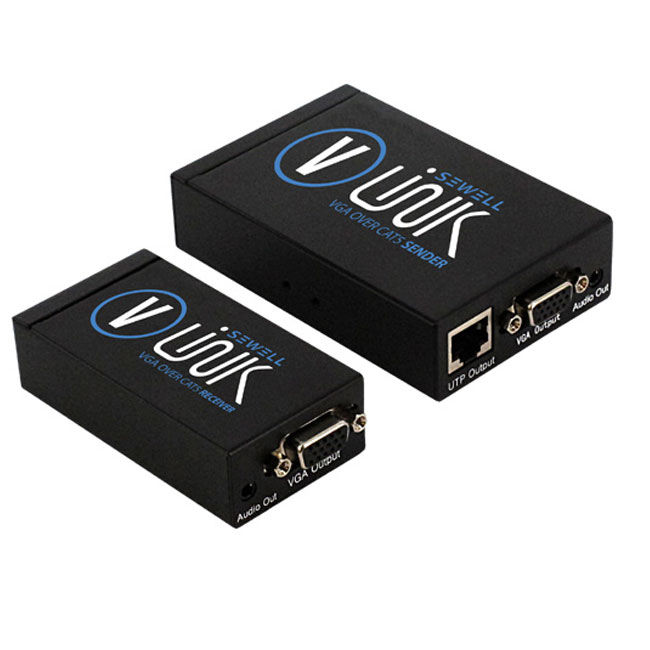

The v-Link by Sewell is the beginning of a new line by Sewell called Sewell-Link. The v-Link is a CAT5 balun with VGA and stereo audio, it will extend your signal up to 1000 ft. All-in-one 1x2 VGA Splitter and ExtenderThe sender unit will split your signal (allowing you to have the VGA and audio right at the source) and use any CAT5e or CAT6 cable to extend the signal to the receiver unit
Technical Features: Extend VGA Video and Stereo audio 1000 ft over one UTP Cat5e6 cable, Adjustable gain and peak to use with different lengths of ethernet cable, Gain adjusts brightness, Peak adjusts the Skew, Supports Resoultions up to 1920x1200, Output Locally and remote over the Ethernet cable, Works with any display that will accept VGA ie. HDTV, Projectors, Monitor, Flat Panels
Supported Resolutions:640X480, 800X600, 1024X768, 1280X720, 1280X768, 1280X960, 1280X1024, 1600X900, 1600X1200, 1920X1080, 1920X1200.
Mechanical Info: Size of VGA UTP Extender 1X1 Splitter 1006525.5mm, Weight of VGA UTP Extender 1X1 Splitter 208g, Size of Receiver (L-W-H) 81.54323MM, Weight of Receiver (Net) 108g
Environmental Info: Operating Temperature 0 C to 70 C, Operating Humidity 10% to 85 % RH (no condensation), Storage Temperature -10 C to 80 C, Storage Humidity 5% to 90 % RH (no condensation). Power Supply: Input: 100-240 Volts, 5060 Htz, Output: 5 Volts, 2000 mAAdditional Details
Features: Extend VGA Video and Stereo audio 1000 ft over one UTP Cat5e/6 cable, Adjustable gain and peak to use with different lengths of ethernet cable, Gain adjusts brightness, Peak adjusts the Skew, Supports Resoultions up to 1920x1200, Output Locally and remote over the Ethernet cable, Works with any display that will accept VGA ie. HDTV, Projectors, Monitor, Flat PanelsSupported Resolutions:640X480, 800X600, 1024X768, 1280X720, 1280X768, 1280X960, 1280X1024, 1600X900, 1600X1200, 1920X1080, 1920X1200Mechanical Info: Size of VGA UTP Extender 1X1 Splitter 1006525.5mm, Weight of VGA UTP Extender 1X1 Splitter 208g, Size of Receiver (L-W-H) 81.54323MM, Weight of Receiver (Net) 108gEnvironmental Info: Operating Temperature 0 C to +70 C, Operating Humidity 10% to 85 % RH (no condensation), Storage Temperature -10 C to +80 C, Storage Humidity 5% to 90 % RH (no condensation)Power Supply: Input: 100-240 Volts, 50/60 Htz, Output: 5 Volts, 2000 mA
BRAND : SEWELL
|
