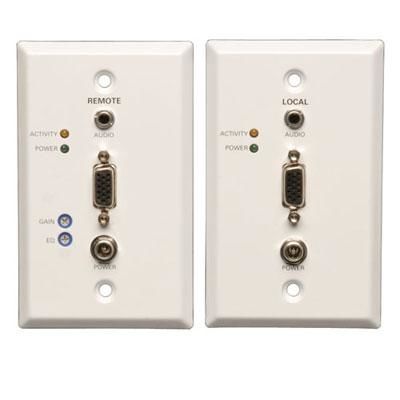

Tripp Lite's B130-101A-WP-1 allows you to extend a 1024 x 768 (60Hz) Video and Stereo Audio signal up to 1,000 ft. from the source using 24Awg, Solid Wire Cat5e/6 cable. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. A maximum resolution of 1920 x 1440 (60Hz) is supported. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Kit includes local (Transmitter) and remote (Receiver) RJ45 type wallplates, which allow you to use standard patch cable, eliminating the need for a 110 punchdown connection. A VGA + Audio "Y" cable is included for use with the local unit, allowing for the connection of a local monitor and speakers. Ideal for digital signage situations, such as retail, schools, churches, etc. 1 year limited warranty. Key Features Supports a maximum resolution of 1920 x 1440 (60Hz) Extend a 1024 x 768 (60Hz) Video and Stereo Audio signal up to 1,000 ft. when using 24Awg, Solid Wire Cat5e/6 cable For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K A VGA + Audio "Y" cable is included for use with the local unit, allowing for the connection of a local monitor and speakers RJ45 type wallplates allow you to use standard patch cable, eliminating the need for a 110 punchdown connection The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases 1 year limited warranty Package Includes Local (Transmitter) wallplate Remote (Receiver) wallplate VGA + Audio "Y" cable Mini-Screwdriver for EQ/Gain adjustment Wallplate Screws (x2) External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A) Owner's Manual
10.4 : 2.3
BRAND : TRIPP LITE
|
